Dongguang Hengfu Roll Forming Machine Co., Ltd. presents a high-performance outdoor metal wall cladding production line, a fully integrated industrial solution designed for efficient, precision manufacturing of decorative metal wall panels. Engineered with advanced roll forming technology, robust structural design, and intelligent control systems, this production line delivers consistent profile accuracy, smooth surface finish, and long-term reliable operation.
This production line is purpose-built for producing high-quality outdoor metal wall cladding, supporting a wide range of metal materials including aluminum alloy, color-coated steel, galvanized steel, and stainless steel. It is optimized for processing thin-to-medium gauge metal coils, ensuring uniform forming without material damage, and producing panels with clean edges, consistent dimensions, and excellent weather resistance.

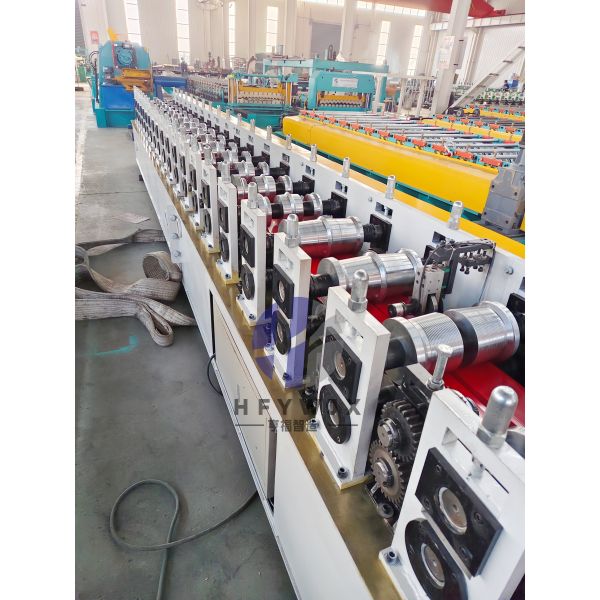

At the core of the line is a heavy-duty roll forming system built with industrial-grade components for continuous high-speed production. The reinforced steel frame minimizes vibration and deformation during operation, while precision-machined rollers ensure smooth material feeding and uniform forming. The system is paired with a high-precision servo-controlled cutting unit, delivering clean, burr-free cuts and strict dimensional accuracy.
The entire production line operates with a fully automated workflow, integrating uncoiling, leveling, roll forming, punching, cutting, and stacking into one seamless process. Controlled by an advanced PLC system with a user-friendly touchscreen interface, operators can easily adjust production parameters, profile sizes, and production speeds.
Frequently Asked Questions
Can the machine produce stainless steel sheets? What are the requirements for the equipment?
Yes, it can; however, it requires reinforcing the forming frames, increasing the hardness of the rollers, and adjusting the forming process.
Can you provide semi-automatic or fully automatic receiving tables?
Yes, optional configurations include pneumatic receiving, hydraulic receiving, and automatic stackers.
How should the machine be stored when not in use for an extended period?
Disconnect the power, clean the machine, apply anti-rust oil, cover it with a dust cover, and store it in a dry environment.
How long is the warranty period?
The entire machine comes with a 12-month warranty, excluding wear parts.
Does the machine require a foundation?
It simply requires a level concrete floor; no complex foundation is necessary.
